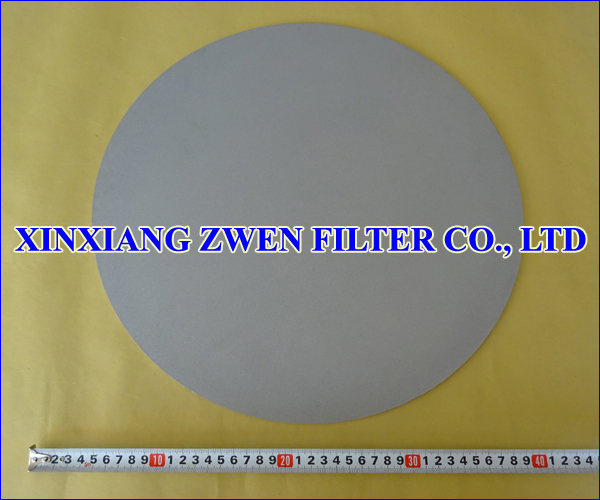

Titanium Sintered Filter Disc
Titanium Sintered Filter Disc

Titanium Sintered Filter Disc

Titanium Sintered Filter Disc Technical Data

Raw Material: Titanium

Filter Rating Range: 0.22 Micron ~ 100 Microns

Operation Temperature:  300

Diameter:  400 mm

Thickness: 1 mm,1.5 mm,2 mm,3 mm,5 mm


Titanium Sintered Filter Disc Feature

1. Titanium sintered filter disc is made from titanium powder particle

2. Titanium sintered filter disc is sintered in a high temperature vacuum furnace

3. Titanium sintered filter disc is depth filtration

4. Titanium sintered filter disc has narrow pore size distribution

5. Titanium sintered filter disc is a good filter media in food industry and medicine industry (GMP) because titanium is an in-noxious metal and an inert metal

6. Titanium powder particle will not shed in the filtration process

7. High dirt holding capacity

8. High porosity

9. High filter rating accuracy

10. The effect of filtration is good

11. High filter efficiency

12. Good permeability

13. Pressure loss is low in the filtration process

14. High flow rate at low differential pressure

15. High compression strength

16. High mechanical strength

17. High abrasion resistance

18. High durability against most liquids, gases and aggressive steam

19. High temperature resistance

20. High corrosion resistance

21. Backwash

22. Washable and Cleanable

23. Reusable

24. Long service life


Application

Sensor, inductor, detector, survey meter, pressure release device, protein analysis, polymer extrusion device, PEM electrolyzers, membrane filtration, polyester filtration, polymer filtration, oil filtration, steam filtration, gas filtration, powder filtration, liquid filtration, water filtration, beverages filtration, detergent filtration, solvents filtration, medicine filtration, pharmaceutical industry, petroleum industry, biological industry, chemical industry, chemical fiber industry, food industry
